Raven Evolution
SKU:RAV-ORE-AKS74U

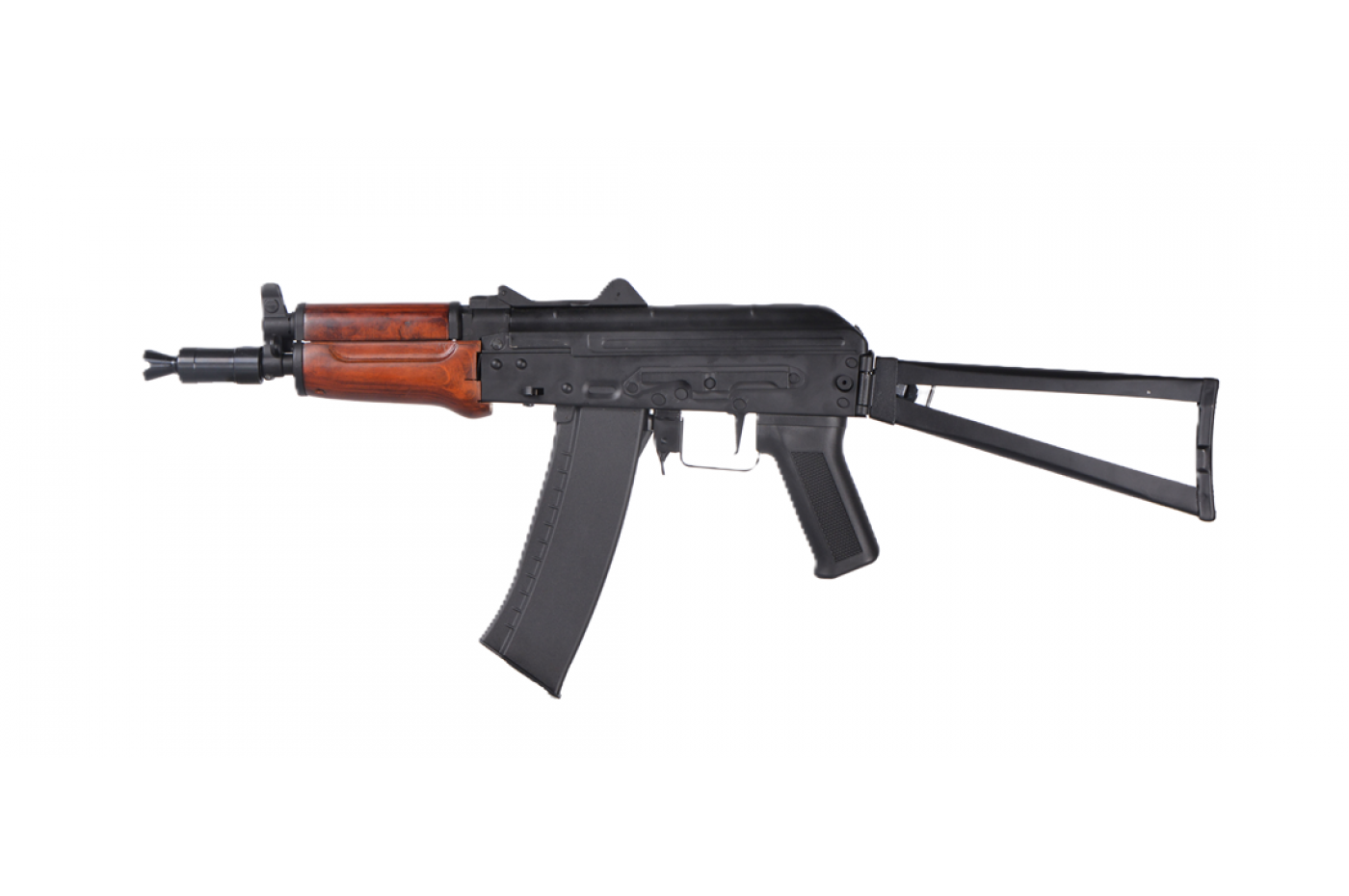

Raven Evolution ORE AKS74U AEG (Real Wood)
Raven Evolution ORE AKS74U AEG (Real Wood)
Couldn't load pickup availability
Raven Evolution ORE AKS74U AEG (Real Wood)
Classic Soviet steel meets high-tech internal electronics. The Raven Evolution ORE AKS74U AEG takes the iconic, short-barrelled Russian carbine and pairs its authentic real-wood and full-metal construction with advanced trigger-programmable performance, giving CQB point-men and Eastern-Bloc purists an aggressive, highly responsive primary.
Authentic Full-Metal & Real Wood Build
True to the original design, the ORE AKS74U features a heavy-duty full-metal receiver and steel skeleton side-folding stock paired with a real wooden handguard. The side-folding stock drops the overall length down to just 19.5 inches for ultra-tight cornering and bag storage, while the built-in AK side-optic mount allows you to attach side-clamp scope rails for red dots and optics.
Programmable FURION V3 ETU/MOSFET
Under the top dust cover sits Raven’s high-tier FURION V3 Electronic Trigger Unit (ETU)/MOSFET. Combining optical sensors, a magnetic switch, and micro-switch triggers, the FURION board gives you total control over your fire modes directly through trigger pulls or the included programming card:
- Custom Fire Modes: Programmable Burst Fire, Binary Trigger, AUG Trigger, and Sniper Trigger.
- Performance Tuning: 5 levels of trigger sensitivity, 5 levels of pre-cocking, and active braking ON/OFF.
- 11.1V LiPo Ready: Wired directly to Deans connectors under the dust cover for rapid cycle speeds.
Heavy-Duty V3 Internal Drivetrain
Powering the AKS74U is a full-metal Version 3 gearbox packed with 18:1 steel gears riding on 8mm ball bearings, a bearing spring guide, and a high-torque motor. Precision trajectory is delivered via a 6.03mm tightbore inner barrel and a metal slider-type hop-up unit, while the Quick-Change Spring system lets you swap main springs effortlessly for different site velocity limits.
Key Features:
- Real Wood & Full-Metal Construction: Authentic weight, real-wood handguard, and rugged field durability.
- Steel Side-Folding Skeleton Stock: Folds neatly against the receiver for maximum manoeuvrability in CQB environments.
- Programmable FURION MOSFET: Customize pre-cocking, active braking, binary mode, and trigger sensitivity on the fly.
- 6.03mm Precision Tightbore Barrel: Ensures tighter shot groupings and higher air seal consistency.
- AK Optic Side Mount: Slide-on side clamp rail compatibility for attaching optics and red dots.
- 14mm CCW Threaded Muzzle: Remove the signature AKS74U flash hider to attach tracer units or suppressors.
Technical Specifications
| Specification | Details |
| Platform | AKS74U/Kalashnikov Series |
| Construction | Full Metal Body w/ Real Wood Handguard & Metal Folding Stock |
| Gearbox | Full Metal Version 3 (8mm Bearings, 18:1 Steel Gears) |
| Electronics | Programmable FURION V3 Optical/Magnetic MOSFET |
| Inner Barrel | 270mm (6.03mm Precision Tightbore) |
| Hop-Up | Metal Slider Style Adjustable |
| Muzzle Velocity | 310 – 320 FPS (with 0.20g BBs) |
| Battery Connector | Deans (T-Plug under dust cover) |
| Recommended Battery | 11.1V LiPo AK Stick |
Pro Tip: Set the FURION MOSFET to 1-level Pre-Cocking and a light trigger sensitivity setting, it turns this short-barrel AK into an instantaneous semi-automatic laser in tight indoor arenas!
UKARA & Two-Tone Notice: A valid UKARA number or registered skirmisher defence is required to purchase this realistic imitation firearm in its original finish. If you do not have a registered defence, please choose our professional Two-Tone Service at checkout. We will paint over 51% of the Airsoft Gun in a bright, legally compliant colour (please allow up to 10 additional days for processing).
