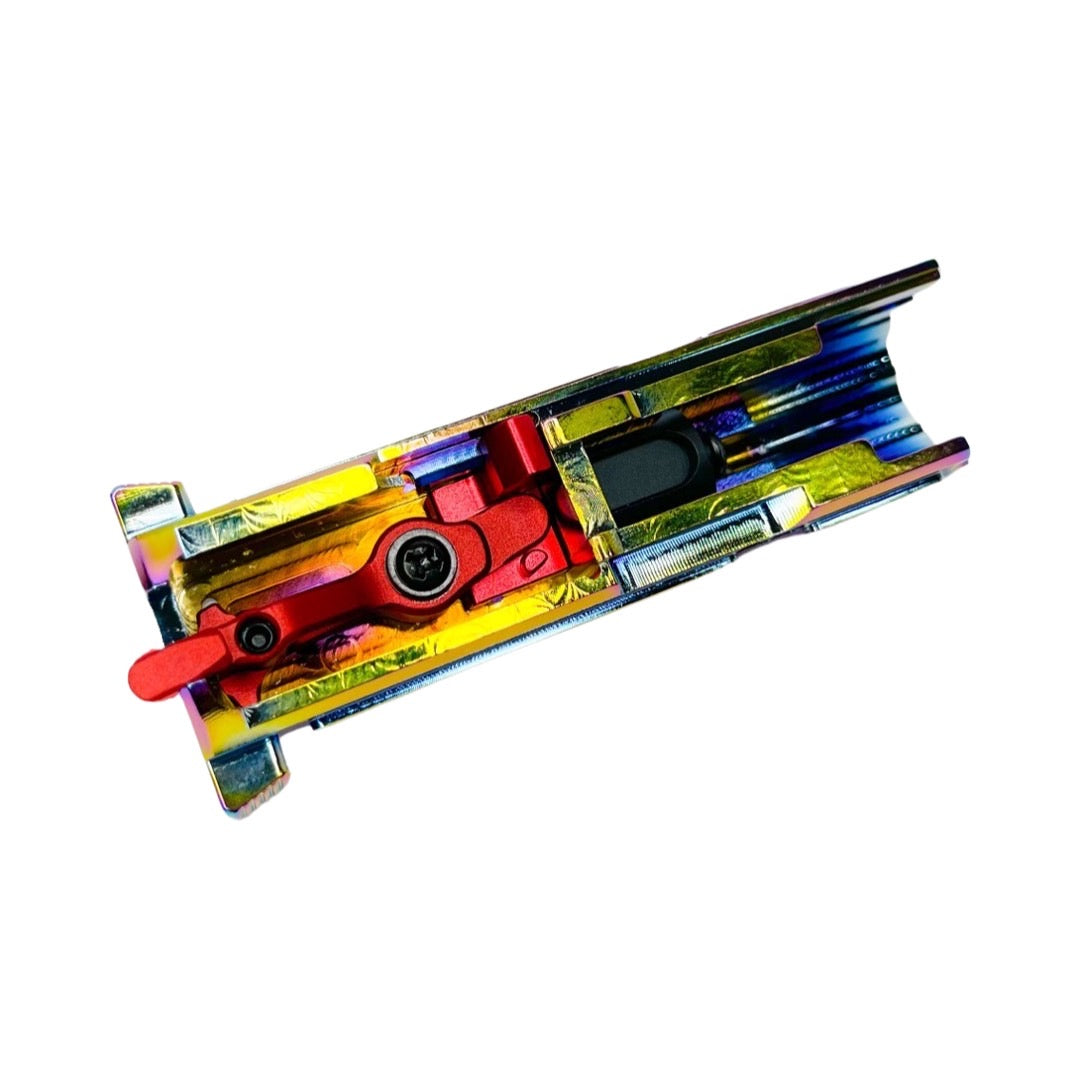

CTM AAP-01 7075 Advanced Bolt Lite - Electroplated Rainbow

CTM Tac AAP-01 7075 Advanced Bolt Lite – Chameleon

CTM Tac's original Advanced Bolt earned a reputation as one of the best performance upgrades money can buy for the AAP-01. The Advanced Bolt Lite brings that same 7075 aluminium strength and the same convenient selector switch, at a more accessible price point. It's the refined, affordable route into the Advanced Bolt experience, without cutting the corners that matter.

This Chameleon finish takes the Lite's proven internals and wraps them in a shifting, colour-changing coating that reacts to light and angle. The Advanced Volt Lite delivers a standout look for players who want their AAP-01 build to turn heads as much as it performs.

Why the Advanced Bolt Lite is a Smart AAP-01 Upgrade

• Ultra-Dense 7075-T6 CNC Aluminium: Milled from high-tensile 7075 aircraft aluminium to deliver maximum yield strength and structural resistance under high-velocity cycling.


• Ultralight 39.4g Reciprocating Engine: Significantly drops moving slide weight to unlock blistering semi-auto double-taps and razor-fast full-auto fire rates.


• Bonus 160% Non-Linear Recoil Spring: Comes packaged with an upgraded 160% non-linear spring designed specifically to snap the lightweight bolt back into battery instantly without nozzle jamming.


• Upgraded V2 Structural Geometry: Features reinforced mounting channels that eliminate structural stress points, increasing housing lifespan during high-volume shooting.


• Integrated Fire Selector & Piston Mount: Includes a matching red 6061 selector plate, 7075 selector switch, and 6061 piston mount for seamless full-auto toggling.


• Carbine Kit & AP7 Chassis Compatible: Fully compatible with standard AAP-01/C pistols, CTM AP7 conversion kits, and custom HPA airsoft rifle carbines.



Technical Specifications


















Specification	Details
Base Platform Compatibility	Action Army AAP-01 & AAP-01C GBB Pistol Series
Material	CNC-Machined 7075-T6 Aircraft Aluminium
Bolt Weight	39.4g
Package Contents	7075 Advanced Bolt Lite, 6061 Piston Mount, Red 6061 Selector Plate, Red 7075 Selector Switch, 160% Non-Linear Recoil Spring
Charging Handle Support	M5 Threaded Mounting Holes (Not compatible with Type C & D handles)




BZ Tech Team Advice:





• Use the Included 160% Spring: Unlike standalone bolts, the Lite package includes CTM's tuned 160% non-linear performance spring. Always install this spring alongside the bolt, it provides the exact forward tension required to return the lighter housing to lockup without causing misfeeds from your airsoft magazine.


• HPA & SMG Efficiency: If you run your AAP-01 as an HPA-powered airsoft rifle or SMG carbine using an M4 mag adapter, this lightweight bolt allows you to drop regulator pressure down to 80–90 PSI while maintaining ultra-fast cycling speeds.


• Threadlock Reminder: Apply a single drop of blue medium-strength threadlocker to your selector switch and charging handle screws during assembly to prevent high-RPM firing vibrations from loosening hardware mid-game.
